[Structural Features]

This type of metal hose plays important role in the field of transmission and distribution. As a transmission link of all kinds of piping connection,DQ-SP-F1 hose is used to convey medium and change the direction of conveyance or machinery position. So it is applied to many fields such as petrochemical industry and aerospace.

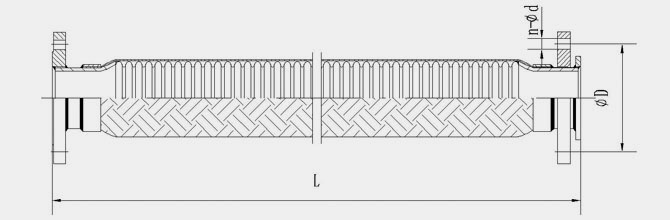

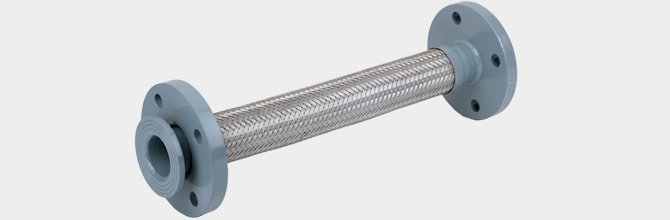

The corrugated hose which is covered with metal braiding is made of stainless steel. One of the ending sides is fixed flanged connection and the other is swivel flanged connection.

Material of bellows: SUS304（SUS316L is also available）

Material of braid: SUS304

Connection: Flanged connection

Joint material: Carbon steel and SUS304, SUS316L

Notes: If you have any other requirement, please contact us.
