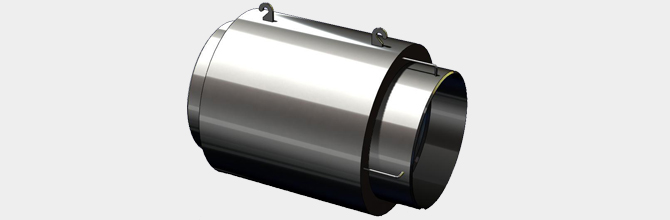

Axial Unidirectional Internal Pressure Type

Products

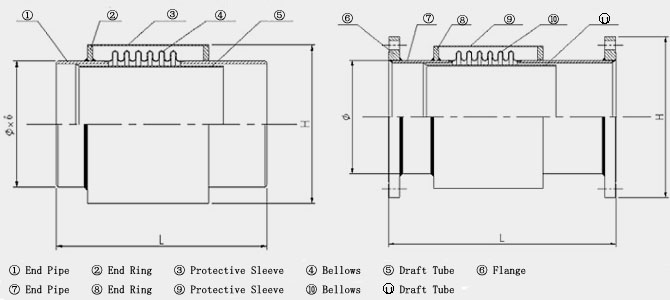

	[Structural Features] The type of expansion joints consists of one bellow and some other components. It can compensate and absorb axial movements through the corrugated flexible deformation. The bellow is protected by strong sleeve. The sleeve also keeps the product stable. The pipe end will be connected by welding directly during the installation.

	Material of Bellows: SUS 304(SUS 321 and SUS316L are also available) Nominal Diameter: DN80-DN1200 Working Pressure: PN2.5/6/10/16/25 Working Temperature: -80℃/+450℃ Connection: Flanged connections or pipe end connection Material of Connection: Carbon steel GB/T 700 for standard use(Special material of connection to meet specific customer & industry requirements) Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available) Notes: If you have any other requirement, please contact us.
