General Simplex Internal Pressure Type

Products

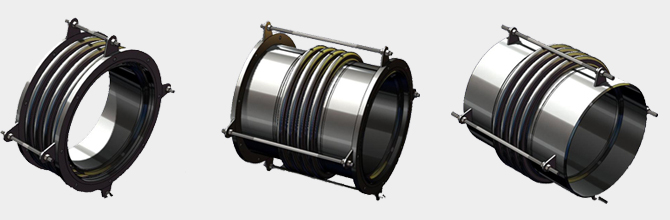

	[Structural Features] The type of expansion joint consists of one bellow and some other components. It can compensate axial movements through the corrugated flexible deformation and also can absorb a little lateral movements or axial and lateral movements in combination as well as angular movements which is seldom used. There are two ways of installation, one is the pipe end can be welded with pipeline directly , and the other one is connected with flanges during the. The rod of expansion joints doesn’t carry the weight at all but only is a support during the transportation or as an adjustment in case of pre-deformation.


	Material of Bellows: SUS 304(SUS 321 and SUS316L are also available) Nominal Diameter: DN80-DN3000 Working Pressure: PN2.5/6/10/16/25 Working Temperature: -80℃/+450℃ Connection: Flanged connections or pipe end connection Material of Connection: Carbon steel GB/T 700 for standard use(Special material of connection to meet specific customer & industry requirements) Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available) Notes: If you have any other requirement, please contact us.
