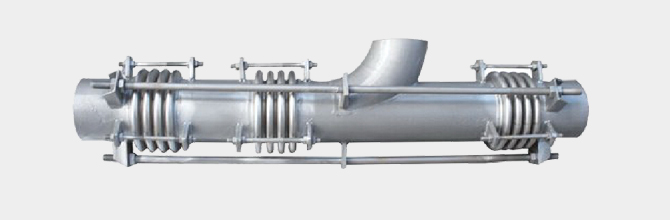

Angle-pipe Pressure Balanced Bellow Expansion Joints

Products

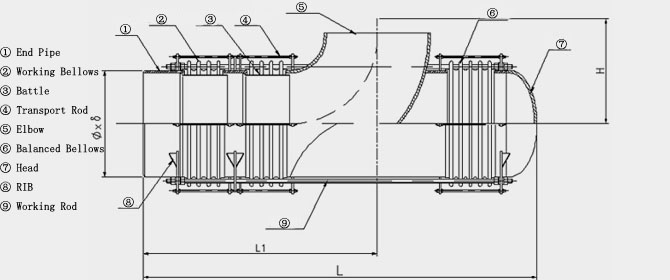

	[Structural Features] This type of expansion joints consists of two bellows connected by an intermediate pipe and some other components. They are usually used to absorb axial and lateral movements in combination. What should be attention is the tie rod does not bear any force, which means it cannot carry the thrust created by medium’s internal pressurization. So the situations of low pressure and large movements will be more available.

	Material of Bellows: SUS 304(SUS 321 and SUS316L are also available) Nominal Diameter: DN300-DN1200 Working Pressure: PN2.5/6 Working Temperature: -80℃/+450℃ Connection: Pipe end connection Material of Connection: Carbon steel GB/T 700 for standard use(Special material of connection to meet specific customer & industry requirements) Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available) Notes: If you have any other requirement, please contact us.
