Vibration Decoupling Type Expansion Joints

Products

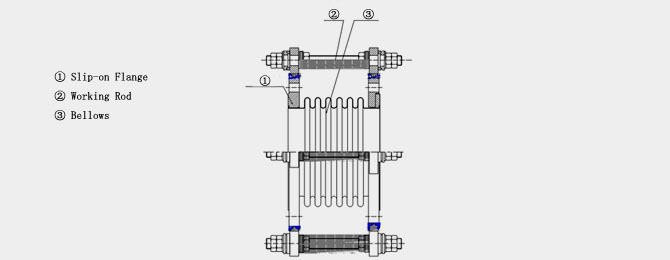

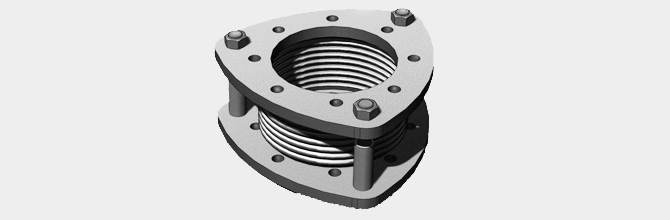

	[Structural Features] Our corporation has years of manufacturing experience and developed this type of bellows expansion joint particular for the working environments of equipments such as pumps and compressors. The flexible bellows designed by special technology help the product with higher ability of absorbing vibration and noise. At the same time the project quality and service life of equipments will be greatly improved. The product solves the problem of bad weather resistance of rubber flexible joints, avoiding burst caused by material fatigue and failure. It is a good choice for engineering design and application because it can not only reduce the vibration and noise during operation but also compensate movements of pipeline.

	Material of Bellows: SUS 304(SUS 321 and SUS316L are also available) Nominal Diameter: DN50-DN700 Working Pressure: PN2.5/6/10/16/25 Working Temperature: -80℃/+450℃ Connection: Flanged connections or pipe end connection Material of Connection: Carbon steel GB/T 700 for standard use(Special material of connection to meet specific customer & industry requirements) Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available) Notes: If you have any other requirement, please contact us.
