[Structural Features]

This type of hose plays an important role in the field of transmission and distribution. As a transmission link of all kinds of piping connection,DQ-SP-F2 hose is used to convey medium and change the direction of conveyance or machinery position. So it is applied to many fields such as petrochemical industry and aerospace.

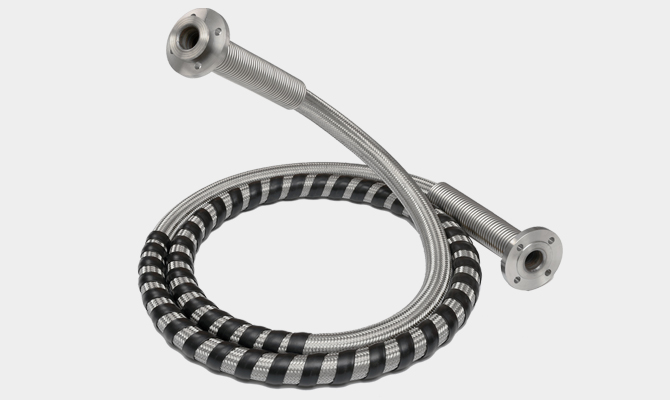

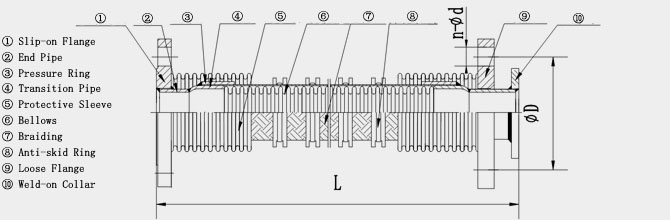

The continuously corrugated hose which is covered with metal braiding is made of stainless steel. It has a special part named clinch ring which relieves the damage caused by dragging for long time. One of the ending sides is fixed Flanged connection and the other is swivel Flanged connection. What’s more, special protective sleeves are added to each end of the hose as a protector. So this type of hose is usually used to discharge oil for automobiles and cryogenic liquid.

Material of bellows:SUS304（SUS316L is also available）

Material of braid: SUS304

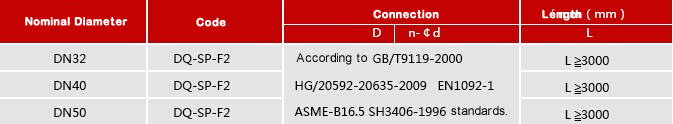

Connection: Flanged connection

Joint Material: Carbon steel and SUS304, SUS316L

Notes: If you have any other requirement, please contact us.
