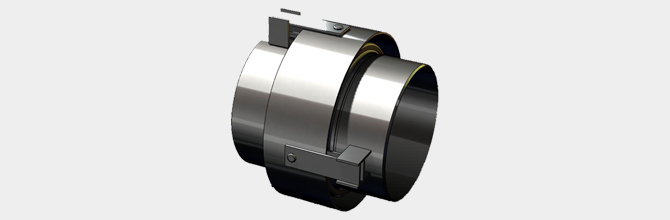

Universal Hinged Type Expansion Joints

Products

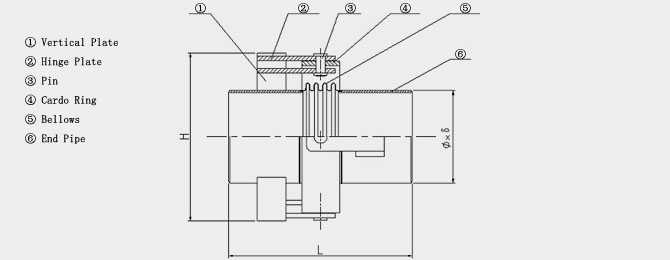

	[Structural Features] Working principles of universal hinged type expansion joints are almost the same as that of simplex hinged bellow expansion joints. Universal hinged type expansion joints consist of one bellow and hinge plates connected with four groups of end pipes and gimbal ring, and flexibility components made of two pairs of hinge pins. The hinge plates face to face and they are perpendicular to the gimbal ring so it can absorb angular movements in any plane. Just as simplex hinged bellow expansion joints, SWJ don’t work alone but usually two or three of them are combined together to be put into use. It is used to compensate deflection movements of Z spatial pipe line. The hinge, hinge pin and hinge plate can carry thrust and some other additional external force.

	Material of Bellows: SUS 304(SUS 321 and SUS316L are also available) Nominal Diameter: DN100-DN1000 Working Pressure: PN2.5/6/10/16/25 Working Temperature: -80℃/+450℃ Connection: Pipe end connection Material of Connection: Carbon steel GB/T 700 for standard use(Special material of connection to meet specific customer & industry requirements) Other choices: Inner sleeve, carbon steel, SUS304(SUS 321 and SUS316L are also available) Notes: If you have any other requirement, please contact us.
